Design Studio

Step 1: Select Your Lighting

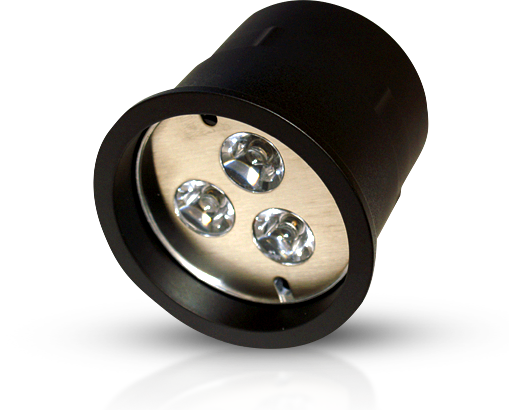

• Trifecta^®

  Select
• SoloBeam^™

  Select
• EyeBeam^™

  Select
• EyeBeamSC^™

  Select
• MiniBeam^™

  Select
• S²Beam^™

  Select
• Aerobeam^™

  Select
• MegaBeam^™

  Select
• Illuminator^®

  View Info

*Supplemental lighting may be required if lighting is obstructed.

Step 2: Select Desired Light Level

< Prev Step Next Step >

Step 3: Select Cab Size

• 6'x4' (2400#) Preview
• 6'x5' (3000#) Preview
• 7'x5' (3500#) Preview
• 7'x6' (4200#) Preview

< Prev Step Next Step >

Step 4: Select Cab Ceiling Height

• 7'6" Preview
• 9'6" Preview

< Prev Step Summary >

Step 5: Design Studio Results

Lighting:

n/a

Light Level:

n/a

Cab Floor:

n/a

Ceiling Height:

n/a

We Recommend X Fixtures (? lumens)

Print Results

---

< Prev Step Start Over

Illuminator Configurations

Suggested Linear Lighting Configurations Based on Interior Finished Wall Length

NOTE: This chart does NOT account for overlap when doing adjoining walls.

Finished Wall Length (inches)	Illuminator 12	Illuminator 18	Illuminator 24	Illuminator 36	Illuminator 48
12 3/4"-19 1/4"	1
19 1/4"-25 1/8"		1
25 1/8"-32 1/8"			1
32 1/8"-36 7/8"	1	1
36 7/8"-43 3/4"				1
43 3/4"-48 3/4"		1	1
48 3/4"-55 5/8"					1
55 5/8"-60 3/4"		1		1
60 3/4"-66 3/4"			1	1
66 3/4"-73 1/4"		1			1
73 1/4"-80 1/8"				2
80 1/8"-85 1/8"		1	1	1
85 1/8"-92"				1	1
92"-96 7/8"		1		2
96 7/8"-103 3/4"					2
103 3/4"-109 5/8"		1		1	1
109 5/8"-115 1/2"				3
115 1/2"-121 1/2"		1			2
121 1/2"-128 1/4"			1		2
128 1/4"-133 1/4"		1		3
133 1/4"-140 1/8"				1	2
140 1/8"-145 1/8"		1	1		2
145 1/8"-151 7/8"					3
